Top Entry Ball Valve

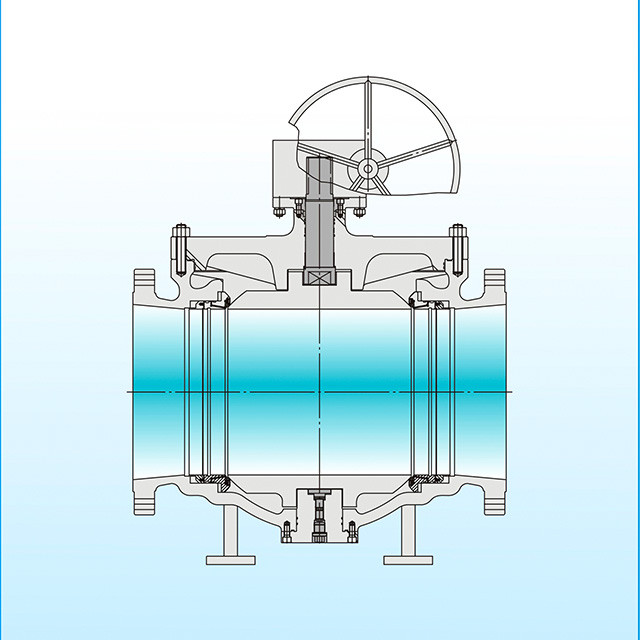

General Description: Flowteck top entry ball valve featuring with uni-body, top entry trunnion mounted ball. This type of valve gives convenient of in-line repair or replace internal components without dismantling it from pipeline. The top entry ball valves are all fire safe designed comply with API 607 & API 6FA.

Design Standard:

Basic Design: API 6D

Face-Face / End-End dimension:  API 6D, ASME B16.10, EN 558

Flange / BW Ends Dimension:  ASME B16.5, EN 1092, ASME B16.25,

Test:  API 6D, BS 6755, API 607, API 6FA

Products Range:

Size:  2" ~ 24"

Rating:  ANSI 150lb ~ 1500lb

Body Materials: Carbon steel, Stainless steel, Alloy

Trim:  A105+ENP, 13Cr, F304, F316, INCONEL 625/825/718

Seat:  PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

Design Feature:

Fire safe design

Double block & bleed

Emergency sealant injection

Cavity pressure self relief

Blowout-proof stem

Application:

On shore Oil & Gas

Off shore Oil & Gas

Refinery

Chemical

Petrochemical

Power plant
