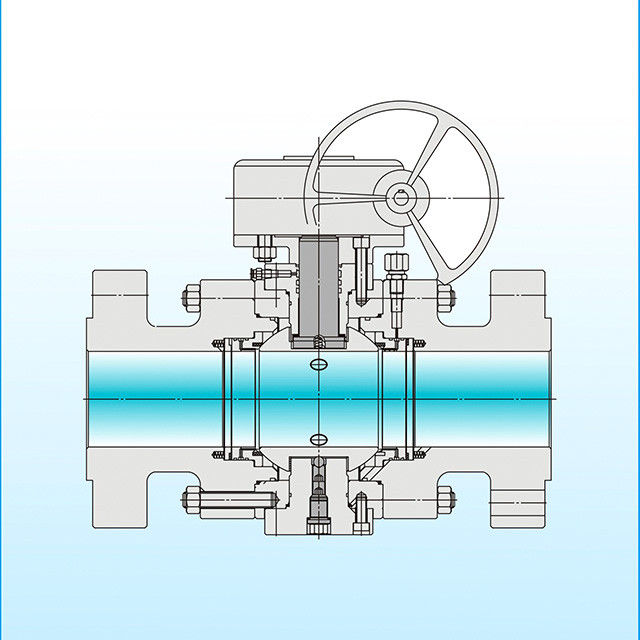

3-PC Body Forged Steel Stainless Steel Ball Valve

General Description: FlowtekForged steel trunnion mounted ball valve featuring with 3-PC split body. Fully forged steel structure eliminates the inevitable casting defects, ideal for high pressure service. It also has advantage of quick delivery compare with conventional cast steel type. This kind of ball valve is fire safe designed per API 607 and API 6FA.

Design Standard:

Basic Design: API 6D

Face-Face / End-End dimension:  API 6D, ASME B16.10, EN 558

Flange / BW Ends Dimension:  ASME B16.5, EN 1092, ASME B16.25

Test:  API 6D, BS 6755, API 607, API 6FA

Products Range:

Size: 2" ~ 48"

Rating:  ANSI 150lb ~ 1500lb

Body Materials:  Carbon steel, Stainless steel, Alloy

Trim:  A105+ENP, 13Cr, F304, F316, F51, 17-4PH, AISI4140,  INCONEL625/825/718

Seat:  PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

Design Feature:

Full port or Reduce port

Fire safe design

Double block & bleed

Emergency sealant injection

Cavity pressure self relief

Blowout-proof stem

Application:

On shore Oil & Gas

Off shore Oil & Gas

Refinery

Chemical

Petrochemical

Power plant
