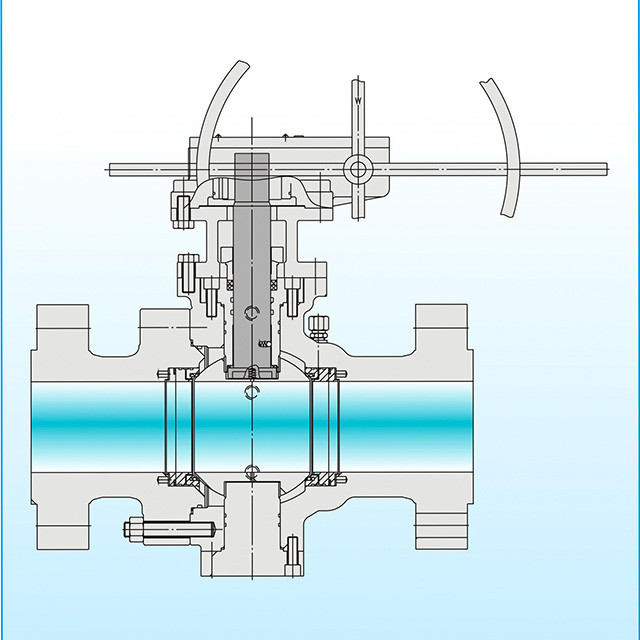

2-PC Body CD4MCu Super Duplex Steel Trunnion Mounted Ball Valve

General Description: cast steel trunnion mounted ball valves featuring with 2-PC split body. This type of valve has advantage of less weight and cost effective. It is ideal for frequent on-off flow control in big size and high pressure pipeline. This kind of ball valve is fire safe designed per API 607 and API 6FA.

Design Standard:

Basic Design: API 6D, EN 1983

Face-Face / End-End dimension:  API 6D, ASME B16.10, EN 558-1/2

Flange / BW Ends Dimension:  ASME B16.5, EN 1092-1, ASME B16.25,

Products Range:

Size:  2" ~ 24" (DN50 to DN600)

Rating:  ANSI 150lb ~ 1500lb

Body Materials:   Carbon steel, Stainless steel, Alloy

Trim:  A105+ENP, F6A, F304, F316, F51, 17-4PH, AISI 4140, INCONEL 625/825/718

Seat:  PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

Design Feature:

Full port or Reduce port

Fire safe design

Double block & bleed

Emergency sealant injection

Cavity pressure self relief

Blowout-proof stem

Application:

Oil & Gas processing

Refinery

Chemical

Petrochemical
