Size: 2" ~ 24"
Rating: ANSI 150lb ~ 1500lb
Body Materials: Carbon steel, Stainless steel
Trim: WCB+ENP, 13Cr, SS304, SS316, 4A, 5A, CD4MCUN.
Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

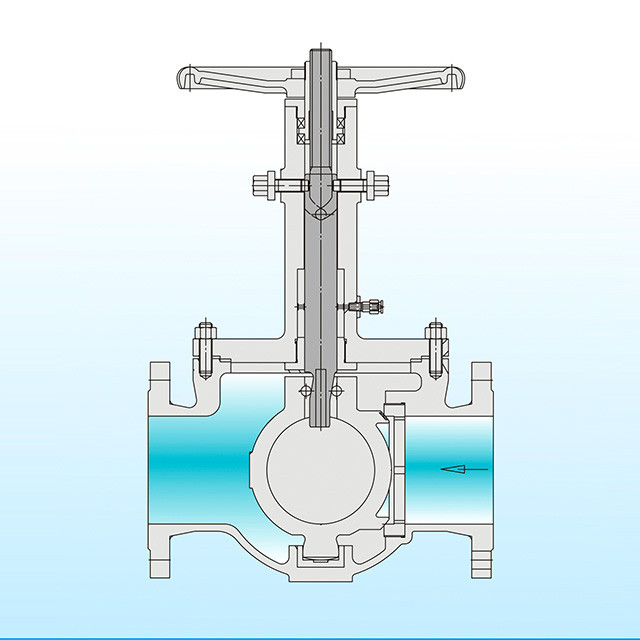

General Description: the rising stem ball valve featuring with uni-body, top entry ball. This type of valve gives convenient of in-line repair or replace internal components without dismantling it from pipeline. The rising stem ball valves are all fire safe designed comply with API 607 & API 6FA.
Design Standard:
BasicDesign: API 6D, ASME B16.34
Face-Face / End-End dimension: API 6D, ASME B16.10
Flange / BW Ends Dimension: ASME B16.5, ASME B16.25,
Test: API 6D, API 598Products Range:
Size: 2" ~ 24"
Rating: ANSI 150lb ~ 1500lb
Body Materials: Carbon steel, Stainless steel
Trim: WCB+ENP, 13Cr, SS304, SS316, 4A, 5A, CD4MCUN.
Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL
Operation: Handwheel, Gear, Motorized, Pneumatic operatorDesign Feature:
Top entry design
Friction free closing and opening
Injectable packing
Single seat design
Seal cleaning
Low torque operation
Wear resistant hard facing on coreApplication:
On shore Oil & Gas
Off shore Oil & Gas
Refinery
Chemical
Petrochemical
Power plant
