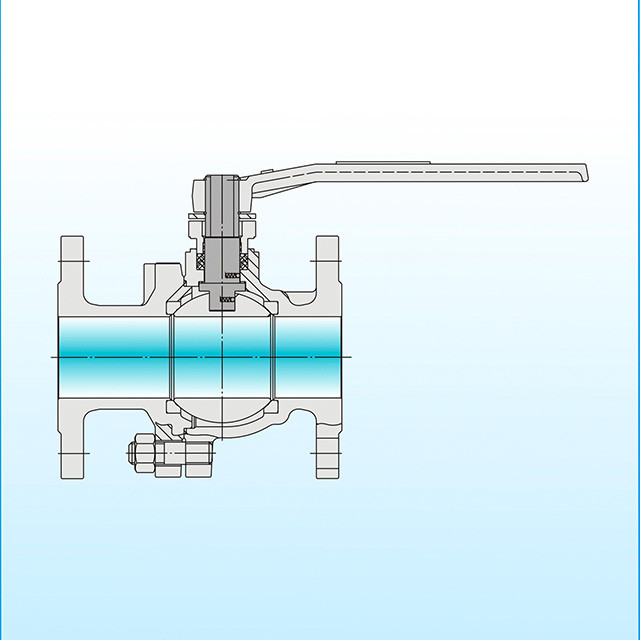

Metal Seated Floating Ball Valves

General Description: metal seated floating ball valves featuring 2-pc forged /casting split body design can be used in severe working service, such as solid particle, high temperature, high pressure, corrosion service etc. FLOWTEK metal seated ball valves are fire safe designed according to API 607 and API 6FA. Working temperature: -196℃~ 600℃.

Design Standard:

Basic Design: BS 5351

Face to Face (End to End): ANSI B16.10

End Connection: ANSI B16.5, B16.25

Test: API 598, BS 6755, API 607

Products Range:

Size : 1/2-8＂

Rating: Class 150~2500LB

Body Material: Carbon Steel, Stainless Steel, Duplex Stainless Steel

Trim Material：Nitriding, TC (tungsten carbide coating), STL and Nickel alloy

Design Feature:

Full port or Reduce port

Gland Flange Design

Hard Facing Seat and Ball

Flexible Seat Design

Blowout-proof stem

Application:

Mine

Paper

Refinery

Petrochemical

Power Generation
