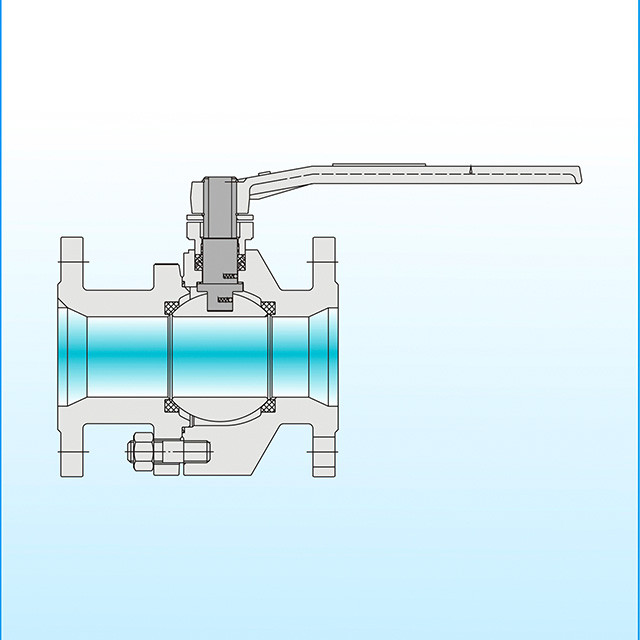

2-PC Body Forged Steel Floating Ball Valve

General Description: FLOWTEK forged steel (die forging) floating ball valves featuring 2-pc or 3-pc forged steel split body side entry design. Specially designed for high pressure service so as to replace traditional trunnion mounted design to save cost. Upon special request, this series of valve can also designed to have Cryogenic or High temperature service.

Design Standard:

Basic Design: BS 5351

Face to Face (End to End):  ANSI B16.10, EN 558-1 GR.28

End Connection:  ANSI B16.5, EN 1092

Test:  API 598, BS 6755, API 607

Products Range:

Size:  1/2" ~ 8"

Rating:  ANSI 150lb ~ 2500lb

Body Materials: Forged carbon steel, Stainless steel

Trim:  A105+ENP, 13Cr, F304, F316

Seat:  PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

Operation: Lever, Gear, Pneumatic operator

Design Feature:

Full port or Reduce port

Fire safe design

Blowout-proof stem

Anti-static

TA-LUFT Low emission control

ISO 5211 top flange

Application:

Refinery

Chemical

Petrochemical

Power plant

Pharmaceutical
