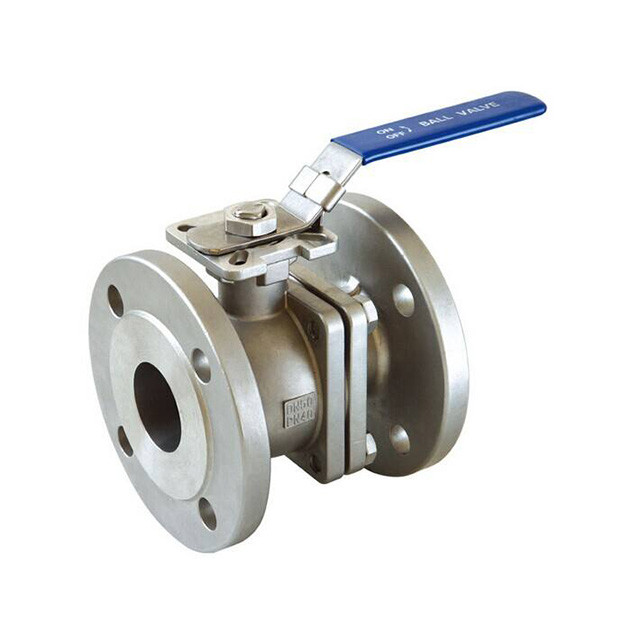

2-PC Body Cast Steel Floating Ball Valve (Short pattern and Long pattern)

General Description: Cast steel floating ball valves featuring 2-PC split body side entry, very popular design in floating ball valve. FLOWTEK offers 3 main type: Conventional design covers working temperature -46℃~200℃; Cryogenic design covers working temperature -196℃ ~ -46℃ and High performance design covers working temperature 200℃ ~ 500℃. All can be fire safe test design.

Design Standard:

Basic Design:   BS 5351, API 608, EN 1983 (DIN 3357)

Face to Face (End to End):  ANSI B16.10, EN 558-1 GR.27 / 28 (Short pattern & Long pattern)

End Connection:  ANSI B16.5, EN 1092-1

Test:  API 598, EN 12266, BS 6755, API 607

Products Range:

Size:  1/2" ~ 8"
Rating:  ANSI 150lb, 300lb; PN 16, PN 25, PN 40
Body Materials:  Carbon steel (WCB, LCB, LCC, 1.0619, 1.7219, etc.), Stainless steel (CF8, CF8M, CF3, CF3M, A995 4A, 5A, 1.4308, 1.4408, 1.4541, 1.4571, 1.4462, etc)
Trim:  A105+ENP, 13Cr, F304, F316, F51, F53
Seat:  PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL
Operation: Lever, Gear, Pneumatic operator

Design Feature:

Full port or Reduce port

Fire safe design

Blowout-proof stem

Anti-static

TA-Luft Low emission control

ISO 5211 top flange (long neck type is optional)

Application:

Refinery

Chemical

Petrochemical

Power plant

Pharmaceutical
