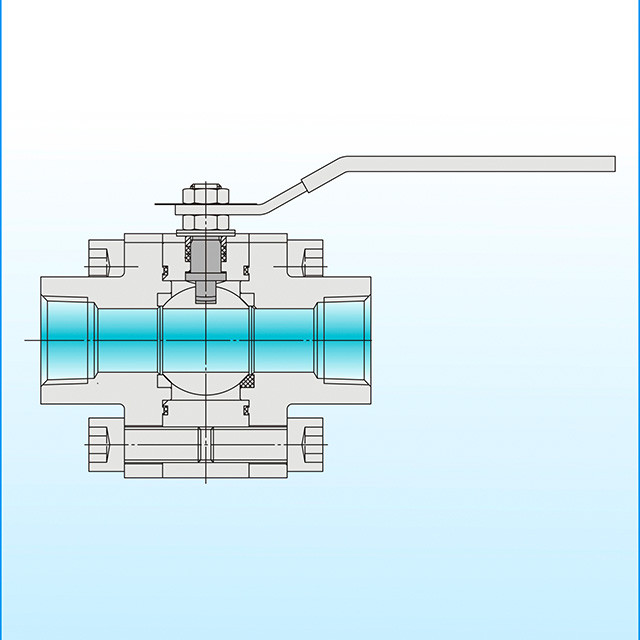

1-2-3-PC Body Ball Valve with NPT or SW ends Stainless Steel

General Description:This kind of ball valve featuring cast / forged steel split body side entry design (optional 1-pc, 2-pc or 3-pc body). Specially designed for high pressure service so as to replace traditional trunnion mounted design to save cost. Upon special request, this series of valve can also designed to have Cryogenic or High temperature service.

Design Standard:

Basic Design: BS 5351

Face to Face (End to End): ANSI B16.10

End Connection: ANSI B16.5, B16.11, B1.20.1

Test: API 598, BS 6755, API 607

Products Range:

Size: 1/2" ~ 4"

Rating: ANSI 800lb ~ 2500lb; 1000 WOG ~ 3000 WOG

Body Materials: Carbon steel, Stainless steel

Trim: A105+ENP, 13Cr, F304, F316

Seat: PTFE, R-PTFE, TFM1600, NYLON, PEEK, PPL

End Connection: S.W. NPT.

Design Feature:

Full port or Reduce port

Fire safe design

Blowout-proof stem

Anti-static

Low emission control

ISO 5211 top flange

Application:

Refinery

Chemical

Petrochemical

Power plant

Pharmaceutical
