DIN - EN Bellow Sealed Globe (Stop) Valve - Cast Steel Globe Valve with Bellow

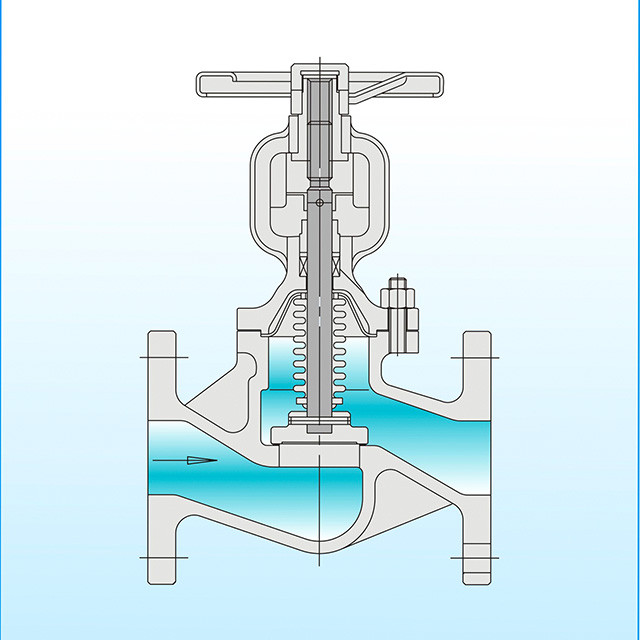

General Description: Leakage from the valve gland is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Standard:

Design and Manufacture: EN 13709

Face to Face Dimension: EN558-1 GR.1

Flange Connection Dimension: EN1092-1

BW Connection Dimension: EN 12627

Test and Inspection: EN12266

Products Range:

Size:  DN50 ~ DN600  PN 16/25/40;  DN50 ~ DN400 PN 64/110;

Rating:     PN 16 ~ PN 110

Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Bellow Materials:  SS304, SS316L, SS321 (1.4541), 1.4571, Inconel, Hastelloy C276

Trim:    Per API 600

Design Feature:

Zero stem emission

Graphite stem packing secondary seal

Welded seat ring or integral body seating surface

5,000 cycles bellow without failure

Application:

Refiner

Petrochemical

Solar energy power plant

Hot oil, steam supply

General Industry
