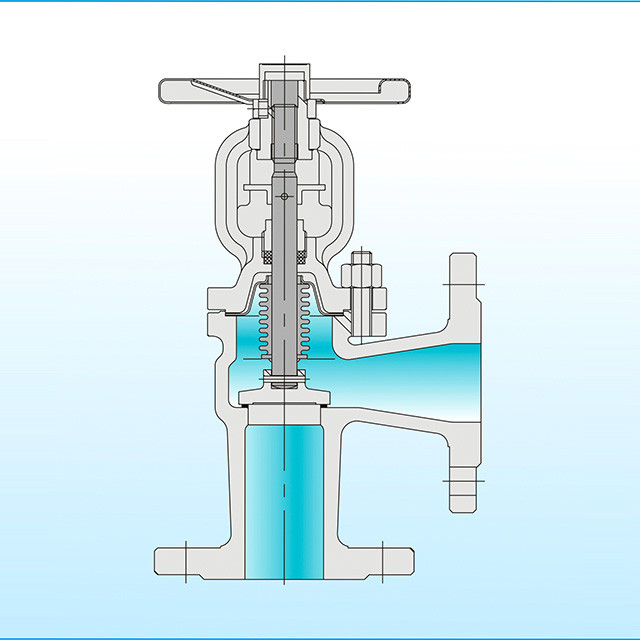

Angle Type Bellow Sealed Stop Valve - DIN Cast Steel Globe Valve with Bellow

General Description: Leakage from the valve gland is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Standard:

Design and Manufacture: EN 13709

Face to Face Dimension:  EN558

Flange Connection Dimension:  EN1092

BW Connection Dimension: EN 12627

Test and Inspection; EN12266

Products Range:

Size:  DN15 ~ DN300  PN16/25/40;

Rating: PN 16 ~ PN40

Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Bellow Materials:  SS304, SS316L, 1.4541, 1.4571, Inconel, Hastelloy C276

Trim: Per API 600

Design Feature:

Zero stem emission

Graphite stem packing secondary seal

Threaded or welded seat ring

8,000 cycles bellow without failure

Application:

Refinery

Petrochemical

Solar energy power plant

Hot oil, steam supply

General Industry
