ANSI Bellow Sealed Globe Valve - Cast Steel Globe Valve with Bellow

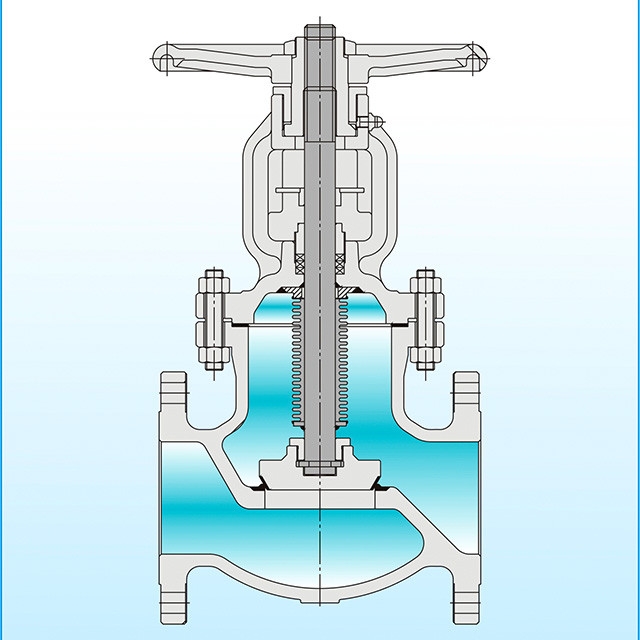

General Description: Leakage from the valve gland is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.

Design Standard:

Design and Manufacture:  BS 1873

Face to Face Dimension: ASME B16.10

Flange Connection Dimension: ASME B16.5, ASME B16.47/MSS SP-44

BW Connection Dimension:  ASME B16.25

Test and Inspection:  API 598, MSS SP-61

Products Range:

Size:  NPS 2"~18" Class 150; NPS 2"~16" Class 300; NPS 2"~12" Class 600

Rating: ANSI 150lb ~ 600lb

Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Bellow Materials:  SS304, SS316L, SS321 (1.4541), SS316Ti (1.4571),  Inconel, Hastelloy C276

Trim:  Per API 600

Design Feature:

Zero stem emission

Graphite stem packing secondary seal

Welded seat ring or integral body seating surface

5,000 cycles bellow without failure

Application:

Refinery

Petrochemical

Solar energy power plant

Hot oil, steam supply

General Industry
