Size: 2" ~ 64" (DN50 ~ DN1600)
Rating: 150 ~ 232Psi, PN10, PN16, PN25, PN40
Body Materials: Cast Iron, Ductile Iron, Cast steel, Stainless steel
Seat Material: EPDM，NBR，VTION, PTFE
End Connection: Wafer, Lug, Double Flange

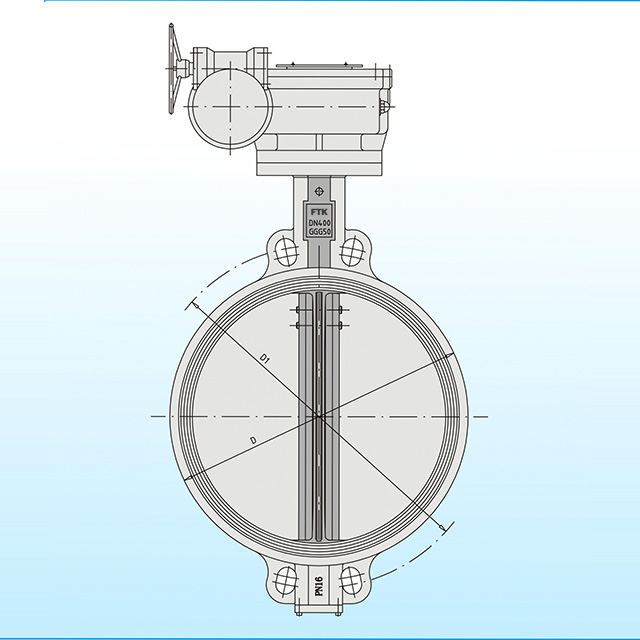

General Description: Centreline resilient seated butterfly valves are widely used in various industries for both On-off and regulating service. Compare with traditional globe & ball valve, butterfly valve is less weight and cost effective. Followed by the rapid development on various elastomer material, resilient seated butterfly valves are now used not only for water system but also for various chemical industry.
Design Standard:
Basic Design: API 609, BS 5155, EN 593
Face-Face Dimension: ASME B16.10, API609, EN 558-1 Series 13 & 20
End Connection: ASME B16.5, ASME B16.47, MSS SP44, DIN 1092-1
Test: API 598, EN12266
Marking: MSS-SP-25 / EN 99
Products Range:
Size: 2" ~ 64" (DN50 ~ DN1600)
Rating: 150 ~ 232Psi, PN10, PN16, PN25, PN40
Body Materials: Cast Iron, Ductile Iron, Cast steel, Stainless steel
Seat Material: EPDM，NBR，VTION, PTFE
End Connection: Wafer, Lug, Double Flange
Design
Feature:
Concentric design
2-PC shaft low torque design
Bi-directional service
Self cleaning
Blow-out proof shaft
ISO 5211 top flange
Optional extended stemApplication:
Potable water supply
Power plants
Shipbuilding industry
Chemical and petrochemical
|
|
