Size: 2" ~ 48" (DN50 ~ DN1200)
Rating: ANSI 150lb ~ 600lb; PN10 ~ PN100
Body Materials: Cast steel, Stainless steel, Alloy steel, Duplex steel.
End Connection: Wafer, Lug, Double Flange
Disc Sealing: EPDM, NBR, PTFE, TFM1600, SS+Graphite laminated, Metal-to-Metal

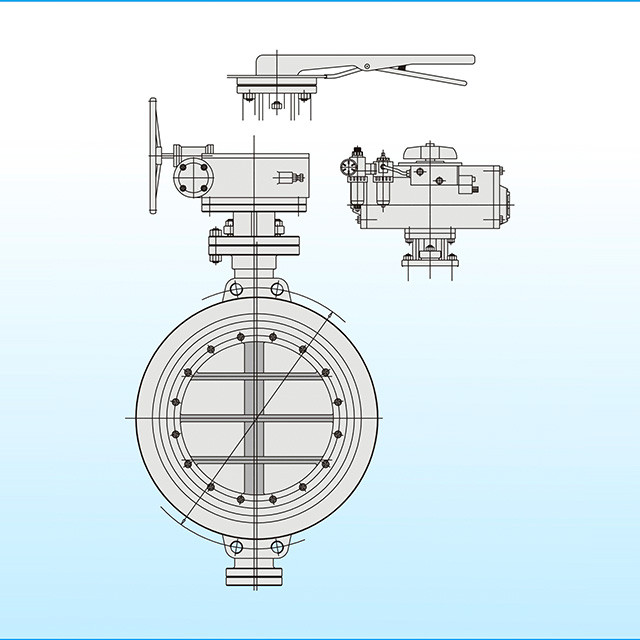

General Description: Triple or Double eccentric butterfly valves are become more and more popular in various industries. Flowteck standard metal seated butterfly valve is triple off-set design which has a advantage of light weight, cost effective and low operation torque. It is now replacing traditional gate, globe & ball valve in many industries.
Design Standard:
Basic Design: API 609,
AWWA C504
Face-Face Dimension: ASME B16.10, API609, EN 558-1 Series 13 & 20
End Connection: ASME B16.5, ASME B16.47, MSS SP44, DIN 1092-1
Test: API 598, BS 6755Products Range:
Size: 2" ~ 48" (DN50 ~ DN1200)
Rating: ANSI 150lb ~ 600lb; PN10 ~ PN100
Body Materials: Cast steel, Stainless steel, Alloy steel, Duplex steel.
End Connection: Wafer, Lug, Double Flange
Disc Sealing: EPDM, NBR, PTFE, TFM1600, SS+Graphite laminated, Metal-to-MetalDesign Feature:
Triple or double off-set
Zero leakage performance
Optional Stellite seat
Bi-directional service
Frictionlessclosure
Blow-out proof shaft
ISO 5211 top flangeApplication:
Oil & Gas processing
Power plants
Chemical and petrochemical
LNG, LPG
Paper mill
