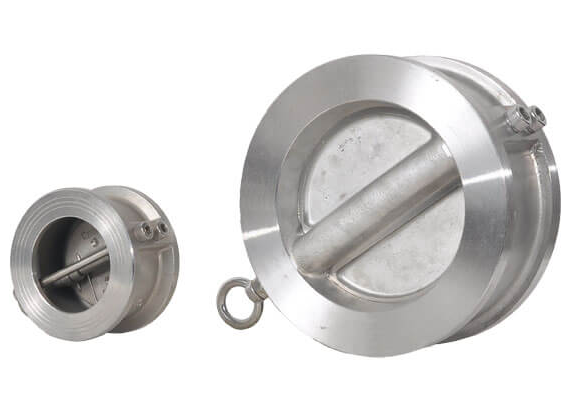

Dual Plate Check Valve (Wafer, Flange, Lug type)

General Description: Such kind of valves is one of FLOWTEK main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:

Basic Design:  API 594, API6D

Face-Face Dimension:  ASME B16.10, EN558-1 GR.16

End Connection:  ASME B16.5, EN1092

Products Range:

Size:  NPS 2" ~ 36"; DN50 ~ DN900

Rating:  ANSI 150lb ~ 900lb; PN16 ~ PN160

Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim: Carbon steel, Stainless steel (WCB,CF8,CF8M)

Design Feature:

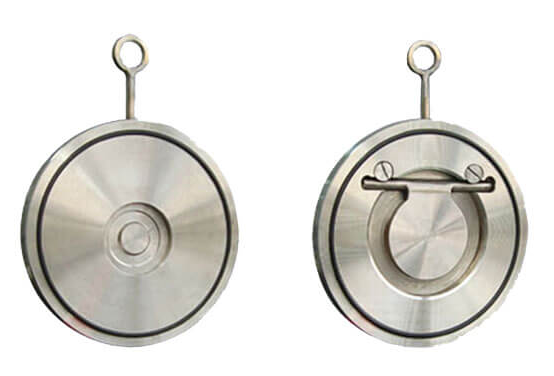

Single plate or dual plate design

Optional piston type (spring loaded) disc or swing type disc

Optional metal seat or soft seat

Application:

Water Treatment Plant

Petrochemical

Power plant

Sugar Industry

Chemical Industry
