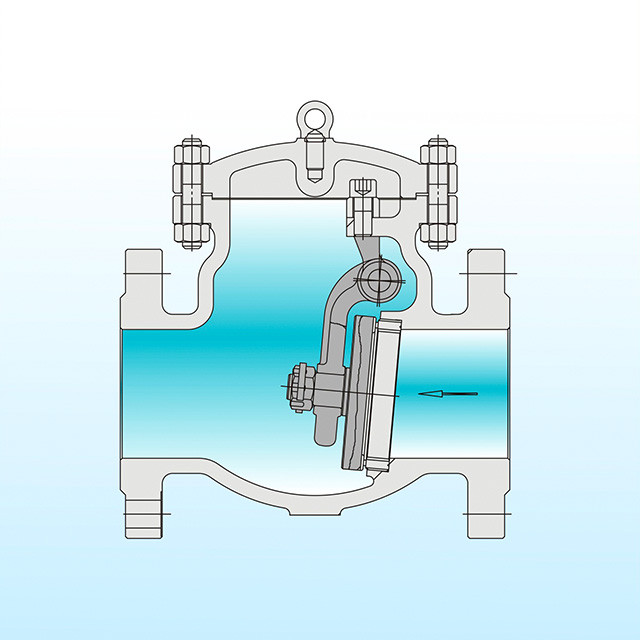

BS1868 Swing Check Valve

General Description: Such kind of valves is one of FLOWTEK main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:

Basic Design:  BS 1868,

Face-Face Dimension:  ASME B16.10,

End Connection:

ASME B16.5, ASME B16.47, MSS SP44, DIN 1092-1, DIN 2544 (PN25),

DIN 2545 (PN40), DIN 2546 (PN64), EN 12627, ASME B16.25 (BW)

Products Range:

Size:  NPS 2" ~ 36"

Rating:  ANSI 150lb ~ 2500lb

Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim:  Per  API 600

Design Feature:

Swing check type

Optional piston type disc with spring loaded

Optional outside lever or counter weight

Application:

Refinery

Petrochemical

Power plant
