Size: NPS 2" ~ 48", DN50 mm ~ DN1200 mm
Rating: ANSI 150lb ~ 2500lb, PN16 ~ PN160 MPa
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Monel, Bronze
(WCB, 1.0619, CF8, 1.4308, CF8M, 1.4408, WC6, 1.7335, WC9, C5, C12, 4A, 5A, LCB, LCC, CF3A, Inconel 625, Incolloy 825, Monel 400, C95800, etc)
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, Pneumatic
General Description:Such kind of valves is one of Flowtek main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.
Design Standard:
Basic Design: API
600/BS1414, ASME B16.34, DIN/EN 1984
Face to Face (End to End): ANSI B16.10;
EN 558-1 GR.14, 15, 26 (DIN3202 F4/F5/F7/F8);
ČSN 133045 or GOST 3706
End Connection: ANSI B16.5, MSS SP-44 / ASME B16.47, ANSI B16.25, EN 1092
Test & Inspection: API 598, EN12266Products Range:
Size: NPS 2" ~ 48", DN50 mm ~ DN1200 mm
Rating: ANSI 150lb ~ 2500lb, PN16 ~ PN160 MPa
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Monel, Bronze
(WCB, 1.0619, CF8, 1.4308, CF8M, 1.4408, WC6, 1.7335, WC9, C5, C12, 4A, 5A, LCB, LCC, CF3A, Inconel 625, Incolloy 825, Monel 400, C95800, etc)
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, PneumaticDesign Feature:

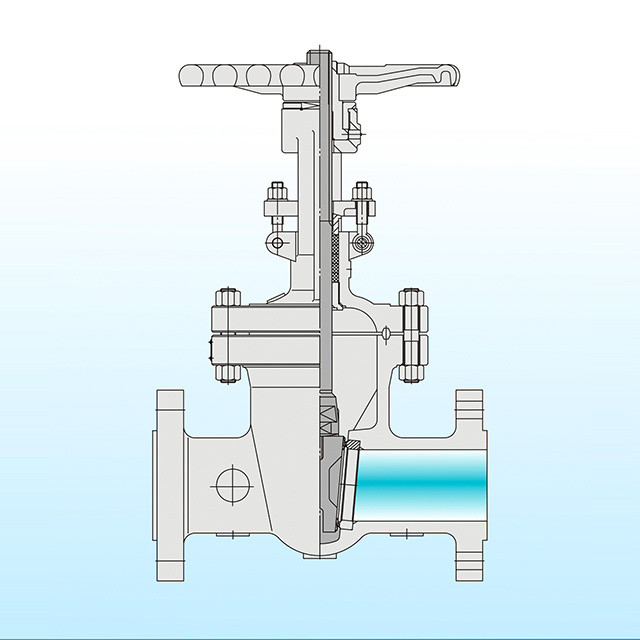

Flexible wedge
Renewable threaded or welded seat ring
Optional Impact hand wheel
Optional rising stem or Non-rising stem
Bolted Bonnet or Pressure Seal BonnetApplication:
Refinery
Petrochemical
Geothermal plant
Power plant
General Industry
