API602 Forged Steel Gate Valve
API602 Forged Steel Gate Valve

API602 Forged Steel Gate Valve

Type: Gate, Globe, Check
Size: 1/2"~ 2"
Rating : ANSI 800lb, 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb
Body Materials: A105, LF2, F11, F22, F5, F304, F316, F91, F51, F53, Inconel, etc.
End connection: NPT, SW, R F, RTJ

Online Inquiry

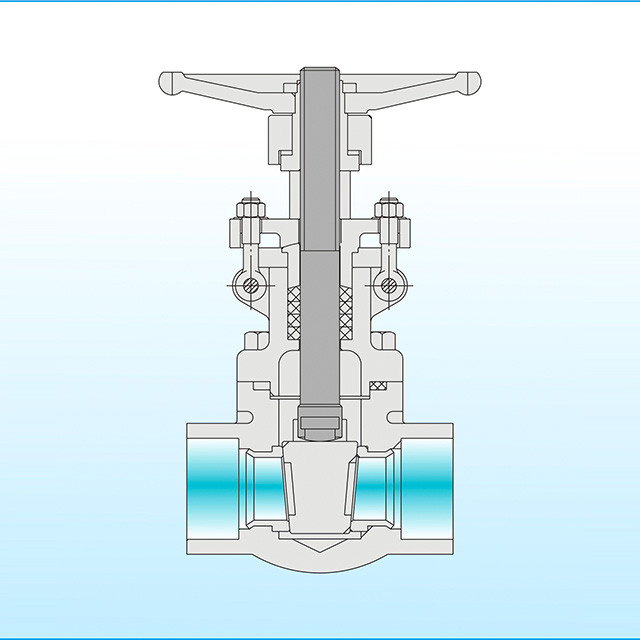

General Description:forged steel valves contains Gate, Globe & Check valves designed fully comply with API 602 / BS 5352. FLOWTEK offer standard bolted bonnet joint with optional welded bonnet. We can also offer forged steel gate, globe valve with bellow seal.

Design Standard:

Basic Design:  API 602, BS 5352

Face to Face (End to End):  ASME B16.10

End Connection:  ASME B16.5, ASME B16.25, ASME B1.20.1

Test & Inspection:  API 598

Products Range:

Type:  Gate, Globe, Check

Size:  1/2"~ 2"

Rating :  ANSI 800lb, 150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb

Body Materials:  A105, LF2, F11, F22, F5, F304, F316, F91, F51, F53, Inconel, etc.

End connection:   NPT, SW, R F, RTJ

Design Feature:

Solid wedge (gate)

Bolted or welded bonnet

Full port or reduce port

Optional bellow seal (gate, globe)

Plug disc with optional needle disc (globe)

Lift check with optional swing check (check)

Bellow sealed or Stem packing sealed

Application:

Petrochemical

General Industry

Steam line

Geothermal plant
