Size: DN50 ~ DN1200 PN 16/25/40; DN50 ~ 600 PN 64/110/150
Rating: PN 16 ~ PN150
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Bellow Materials: SS304, SS316L, 1.4541, 1.4571, Inconel, Hastelloy C276
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, Pneumatic

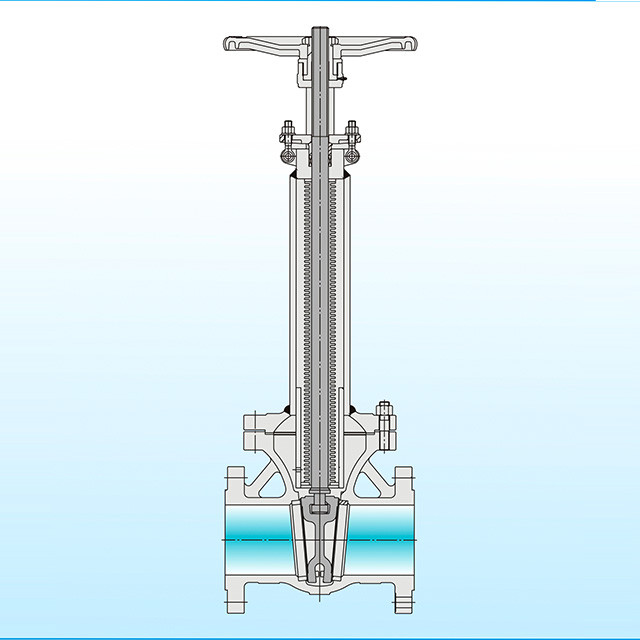

General Description： Leakage from the valve gland (stem packing) is often a problem for environmental protection & sometime it is quite dangerous if such leakage is from a hazardous fluid or gas. FLOWTEK bellow sealed valves are designed with a bellow cartridge which welded to the valve bonnet and stem, so that when the stem up & down movement makes the bellows expands & compress. Therefore there is no sliding or rotating seals through which process fluid can leak.
Design Standard:
Design and Manufacture: EN 1984, DIN 3352
Face to Face Dimension: EN558-1 GR.14, 15, 26, DIN3202-F4 / F5 / F7
Flange Connection Dimension: EN1092-1 B1/B2, DIN2544 PN25, DIN2545 PN40, DIN2546 PN64
BW Connection Dimension: EN 12627
Test and Inspection: EN12266, ISO5208
Other: NACE MR01-75, Low Emission TestProducts Range:
Size: DN50 ~ DN1200 PN 16/25/40; DN50 ~ 600 PN 64/110/150
Rating: PN 16 ~ PN150
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Bellow Materials: SS304, SS316L, 1.4541, 1.4571, Inconel, Hastelloy C276
Trim: Per API 600
Operation: Handwheel, Gear, Motorized, PneumaticDesign Feature:
Zero stem emission
Flexible wedge
Graphite stem packing secondary seal
Threaded or welded seat ring
5,000 cycles bellow without failureApplication:
Refinery
Petrochemical
Solar energy power plant
Hot oil, steam supply
General Industry
