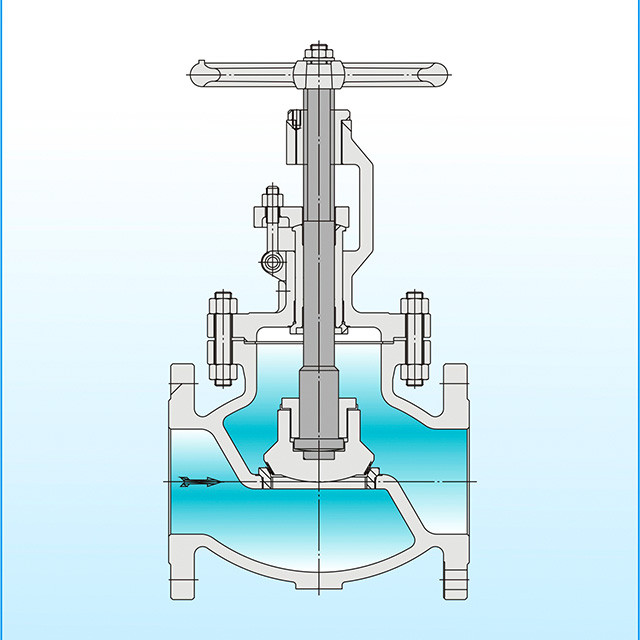

ANSI Globe Valve

General Description: Such kind of valves is one of our main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:

Basic Design:  BS 1873, ASME B16.34

Face - Face Dimension:  ASME B 16.10

End - End Dimension:   ASME B 16.25

Flange Dimension: ASME B 16.5, ASME B16.47

Products Range:

1/2” to 2″ class ANSI 150 to 4500 (for forging type)

2″ to 60″ class ANSI 150
2″ to 48″ class ANSI 300
2″ to 36″ class ANSI 600
2″ to 24″ class ANSI 900 & 1500
2″ to 12″ class ANSI 2500

Body Materials: Carbon Steel, Stainless Steel , Alloy Steel, Duplex Steel

Trim: Per API 600

Design Feature:

Low emission control

Threaded or welded seat

Plug or throttling disc

Optional Impact hand wheel

Application:

Refinery

Petrochemical

Power plant
