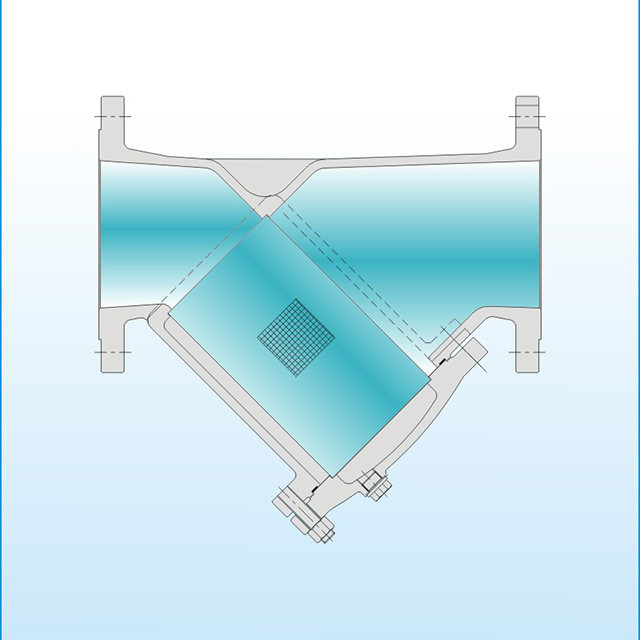

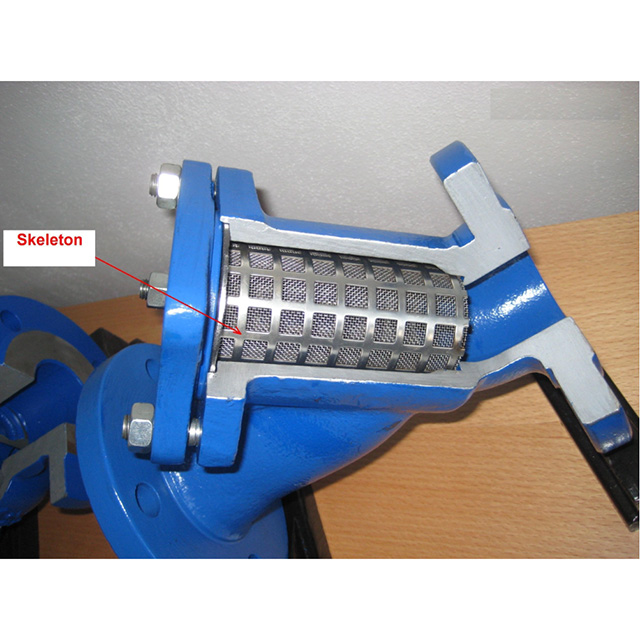

Y-type Strainer (Filter)

General Description: Such product is one of FLOWTEK main products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.

Design Standard:

Basic Design:  ASME B16.34, DIN 3356,

Face-Face Dimension:  ASME B16.10,  EN558-1 GR.1

End Connection:  ASME B16.5, DIN 1092-1, EN 12627, ASME B16.25 (BW)

Products Range:

Size:  NPS 1/2" - 24" ; DN15 - 600 mm

Rating:   ANSI 150lb - 1500lb; PN16 - PN160

Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel

Trim (Screen): SS304, SS316, etc.

Design Feature:

Advanced structure, small flow resistance, easy to discharge

Application:

Sewage Treatment

Chemical, petrochemical
